Which module works for FDM printing?
With a 0.4 mm nozzle, stay at module 1 or above; module 1.5–2 is the sweet spot for strong, quiet printed gears. Below module 1 the tooth flanks lose their involute shape to the nozzle radius.

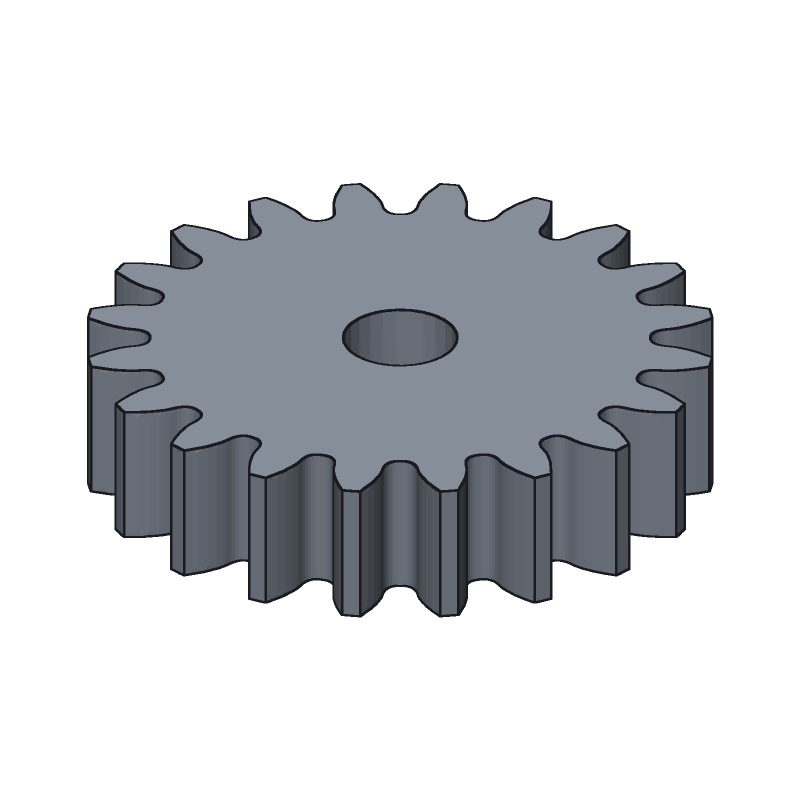

Set module, tooth count, pressure angle, face width and bore — the generator computes a proper involute tooth profile, not a cosmetic approximation, so printed pairs actually mesh. Because the result is parametric CAD, hubs, keyways and lightening holes are one agent edit away.
Each parameter below rebuilds real geometry on every change — this is parametric CAD, not a scaled mesh.
| Parameter | Default | Range | What it does |
|---|---|---|---|
| Module | 2 mm | 1 – 5 | Tooth size; mating gears must share it. |
| Number of teeth | 20 | 8 – 120 | Pitch diameter = module × teeth. |
| Pressure angle | 20 ° | 20 / 25 | 20° standard; 25° for stubbier, stronger teeth. |
| Face width | 10 mm | 3 – 40 | Gear thickness along the axis. |
| Bore style | circular | none / circular / hex | Center hole: round shaft or hex socket. |
| Bore size | 8 mm | 2 – 30 | Shaft diameter, or hex across-flats. |
With a 0.4 mm nozzle, stay at module 1 or above; module 1.5–2 is the sweet spot for strong, quiet printed gears. Below module 1 the tooth flanks lose their involute shape to the nozzle radius.
Generate both with the same module and pressure angle, any tooth counts you like. Center distance = module × (teeth₁ + teeth₂) / 2. Add 0.1–0.2 mm to that distance for printed backlash.
PETG for general use, nylon for high wear. Print flat, 100% infill or at least 5 perimeters so the teeth are solid, 0.15 mm layers keep flanks smooth.
